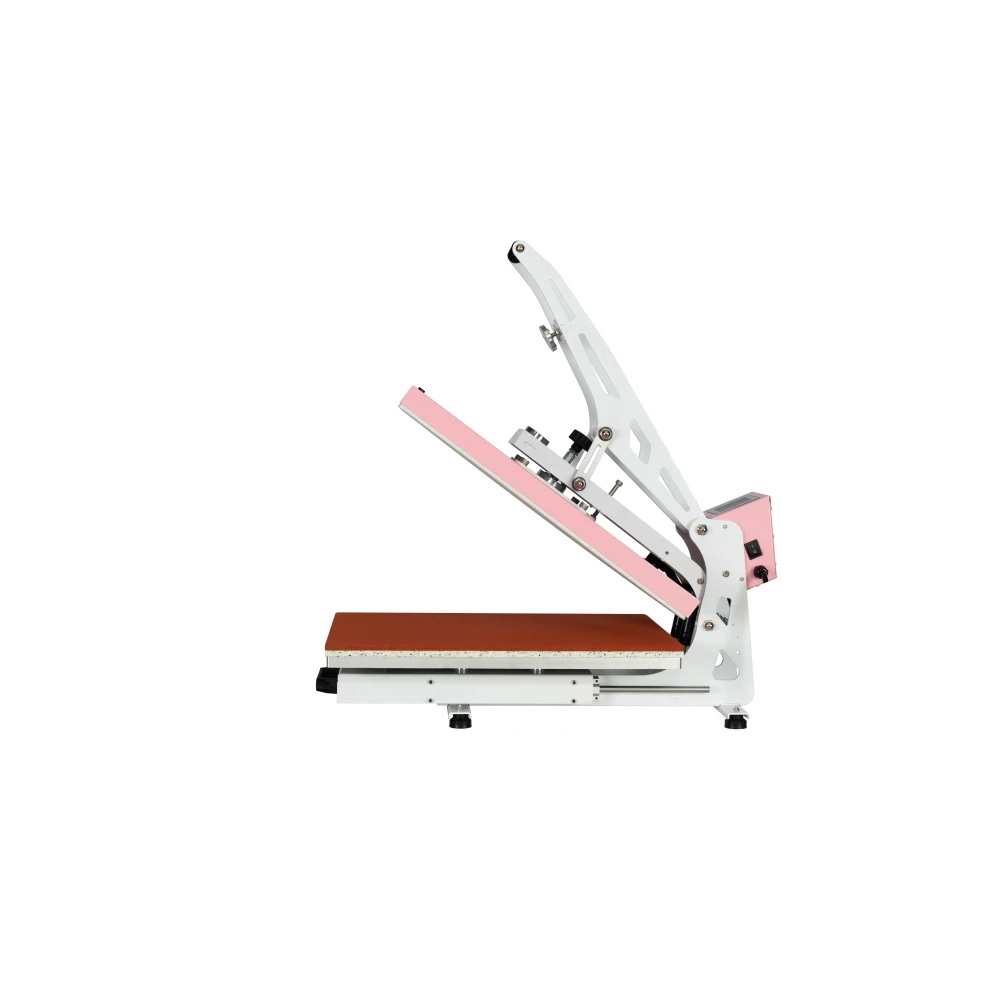

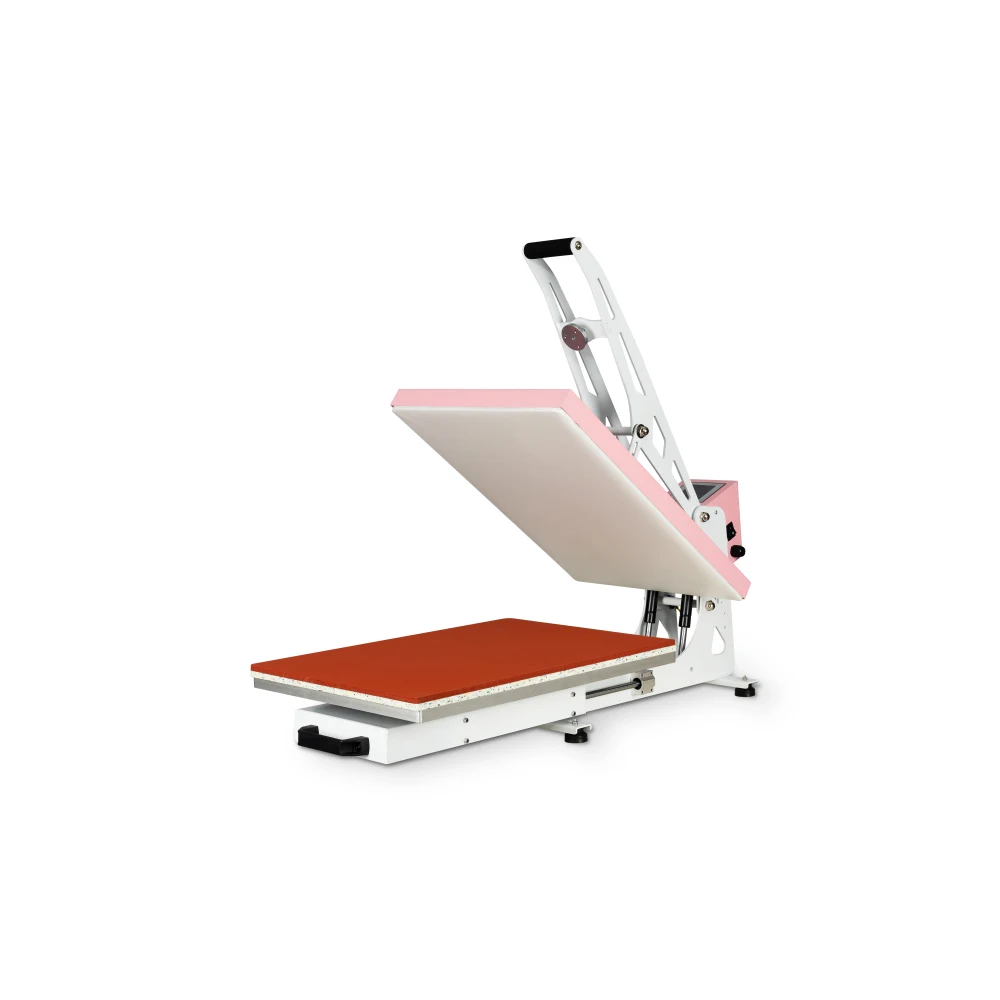

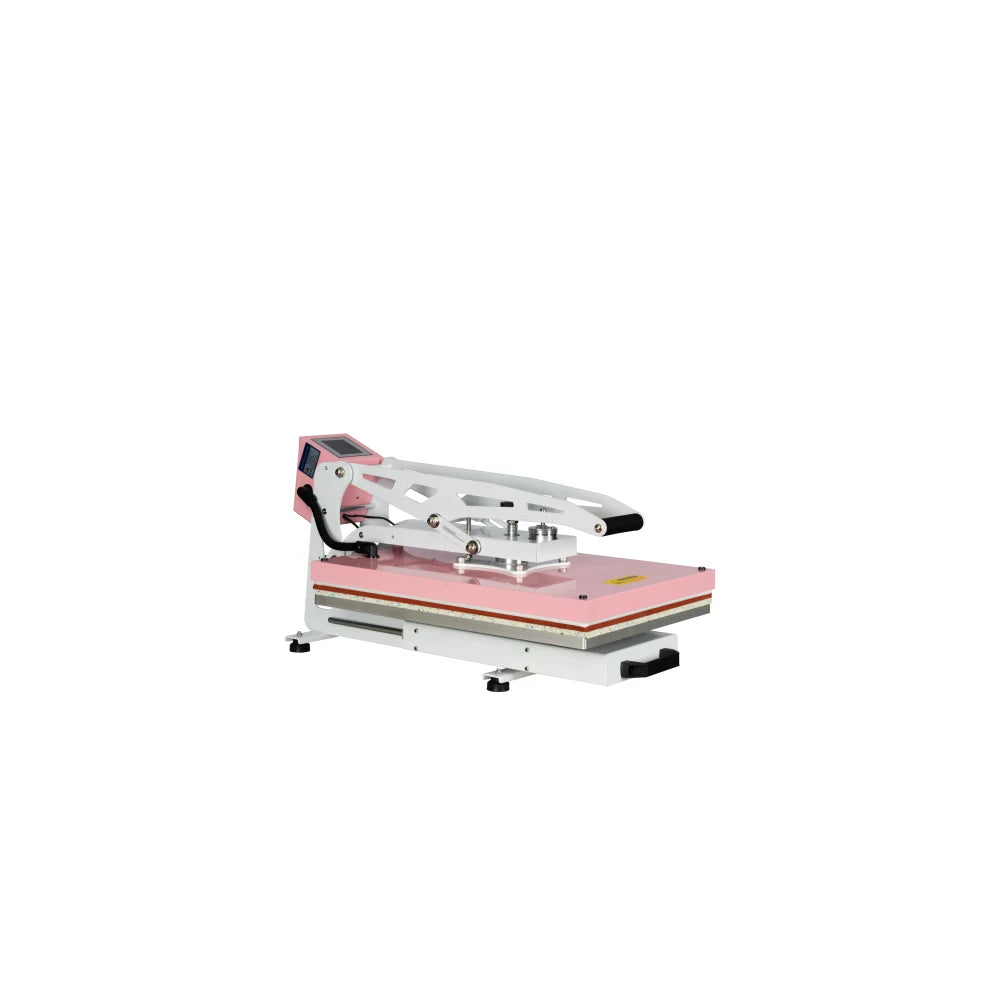

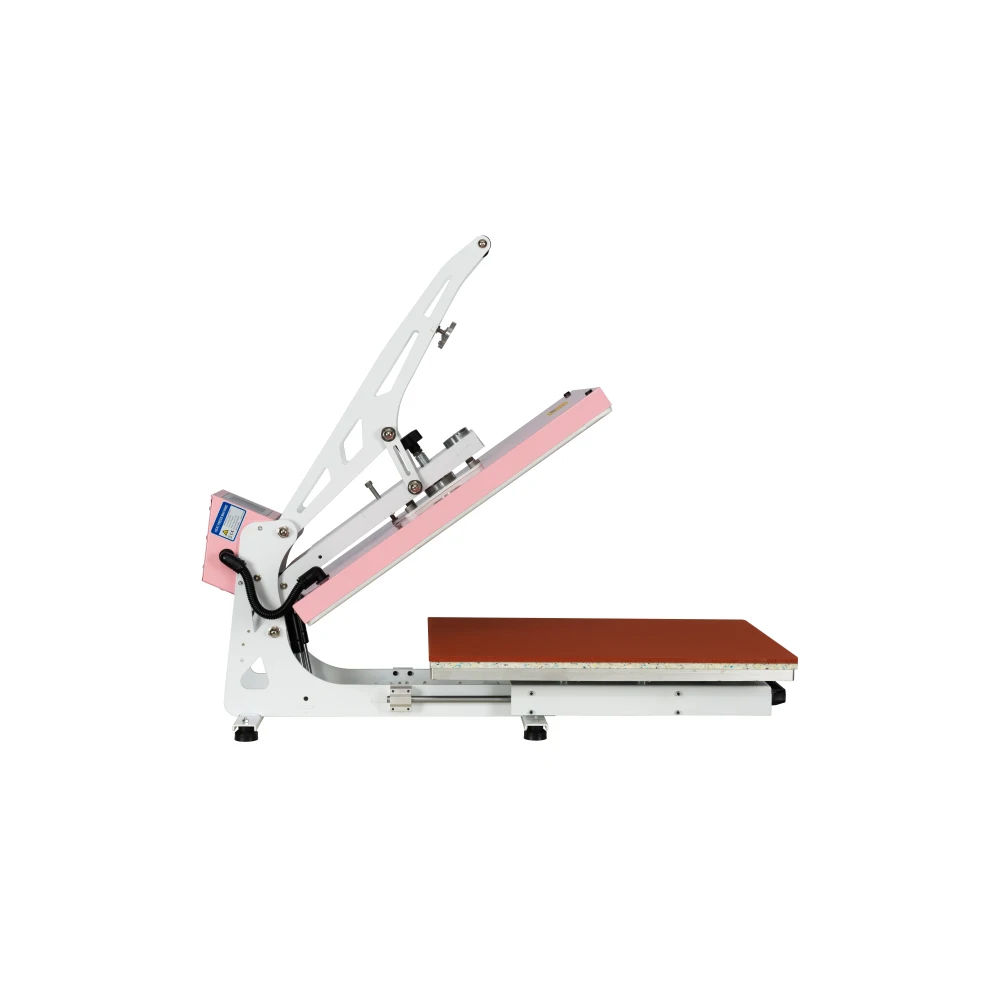

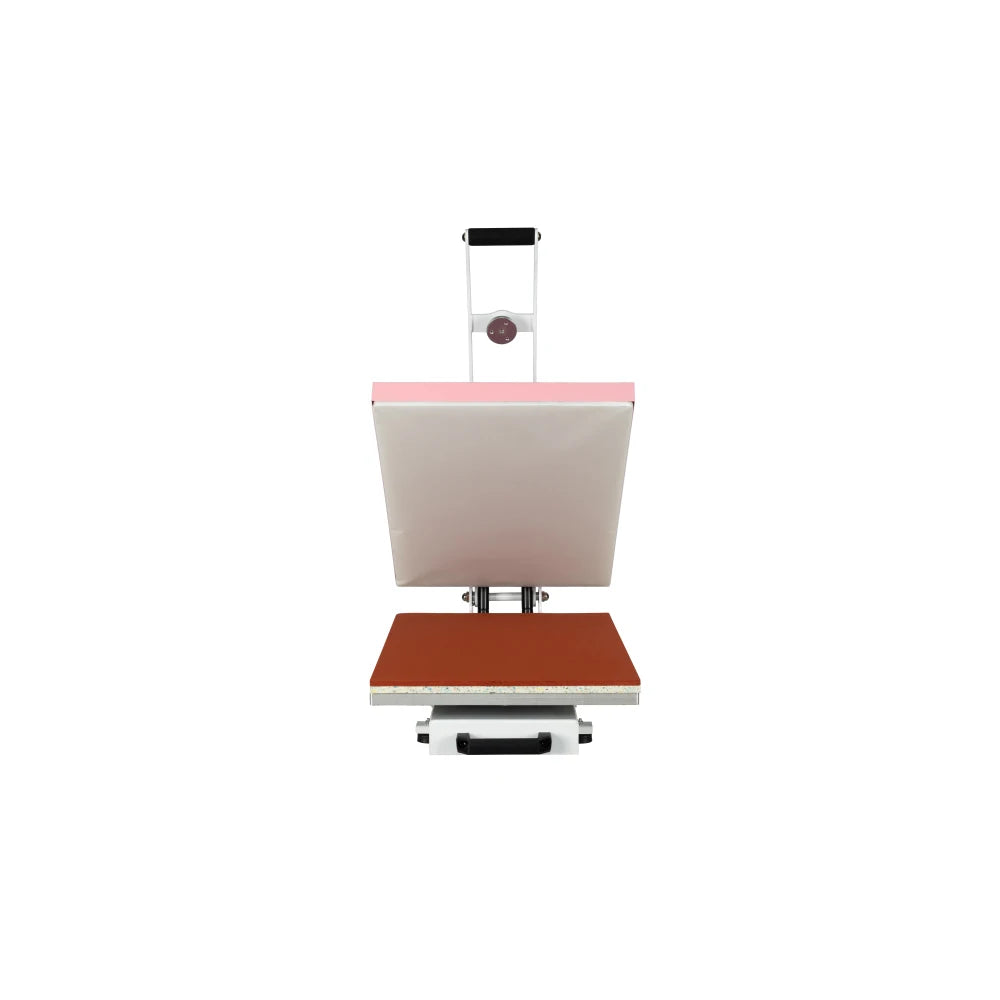

16x24 Semi-automatic Heat Press Machine With Auto Open and Slide-out base

16x24 Semi-automatic Heat Press Machine With Auto Open and Slide-out base

$835.19
Color
Ships From

SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Item Code: W1883P195257

Main Color: Pink+White

Main Material: Aluminium

Origin:

Product Type: General Item

  • Voltage: 110 volt Power: 2000 watts, Heat Press Style Clampshell
  • With Slide-out Base

  • Temperature Range: 0-500

  • Electronic time and heat control

  • Silicon pad lightly glued down for easy replacement

  • Pressure adjustable

  • Pink Model: CH-640A

  • Automatic open

Technical features:

Voltage(V):

110/60HZ

Power(KW):

2

Temperature(℃):

0-299

Delaying time(S):

1-99

G.W.(LB):

88.20

Packing Size(in):

34.4x18.3x18.5

Accept Thickness:

Max. 2.36'' Thick Items

Range of Application:

Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics

Heat Plate Size:

16'' x 24'' (40 x 60cm)

2

Pure Cotton Time:

15s-25s

Polyester Time:

40s

Chemical Fiber Time:

10s-40s

Pearl Board Time:

60s-100s

Metal Pendant Time:

60s

Mousepad Time:

50s

Vitrolite Time:

180s

Ceramics Time:

180s

Temperature Requirements of Different Materials

Pure cotton

356℉-428℉ (180℃-220℃)

Polyester

356℉ (180℃)

Chemical fiber

302℉-356℉ (150℃-180℃)

Pearl board

356℉ (180℃)

Metal pendant

356℉ (180℃)

Mousepad

374℉ (190℃)

Key ring pendant

356℉ (180℃)

Ceramics

356℉-428℉ (180℃-220℃)
