SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Item Code: W1883113270

Main Color: Grey

Main Material: Aluminium

Origin:

Product Type: General Item

1. Heat press machine suitable for larger area heat transfer press operations
2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely
3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect
4.For T-shirts, mouse pads, license plates, magnetic material and more
5. Special high temperature cloth for hot stamping machine covered
6. High accuracy of signal indication when press process is completed;

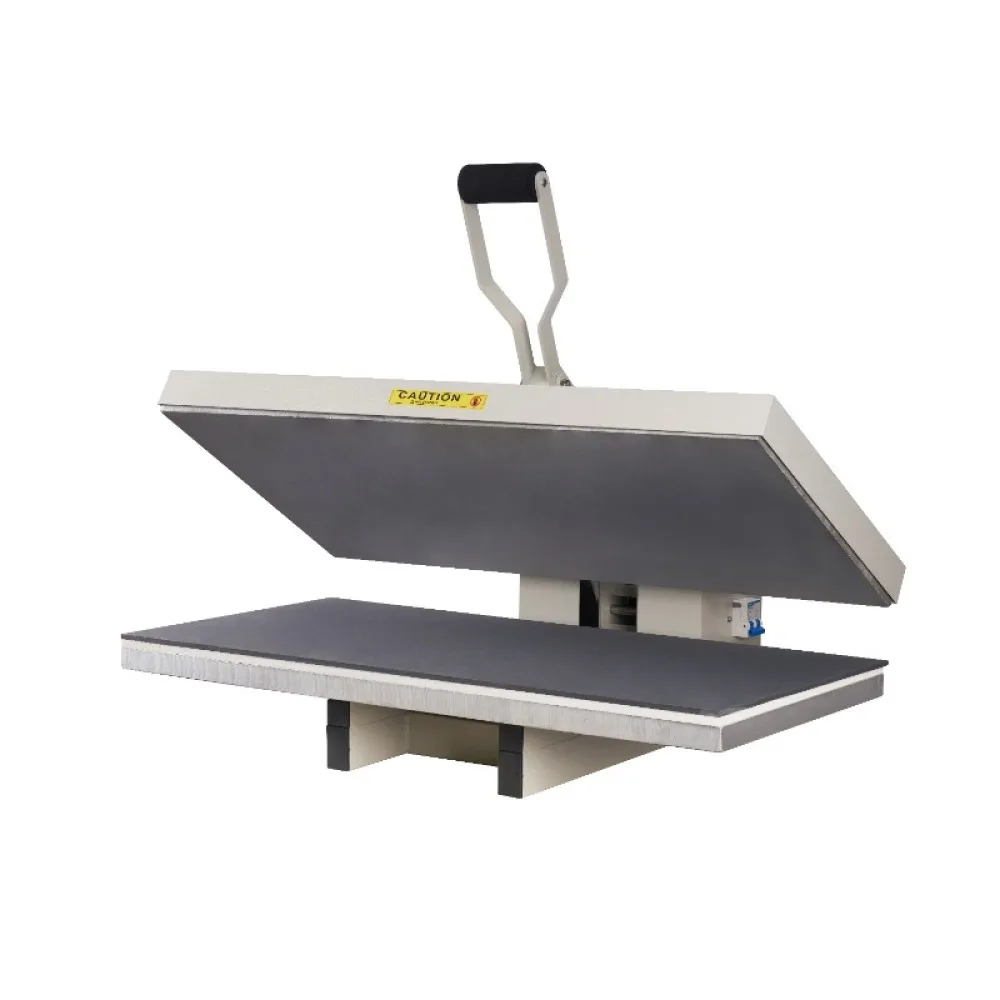

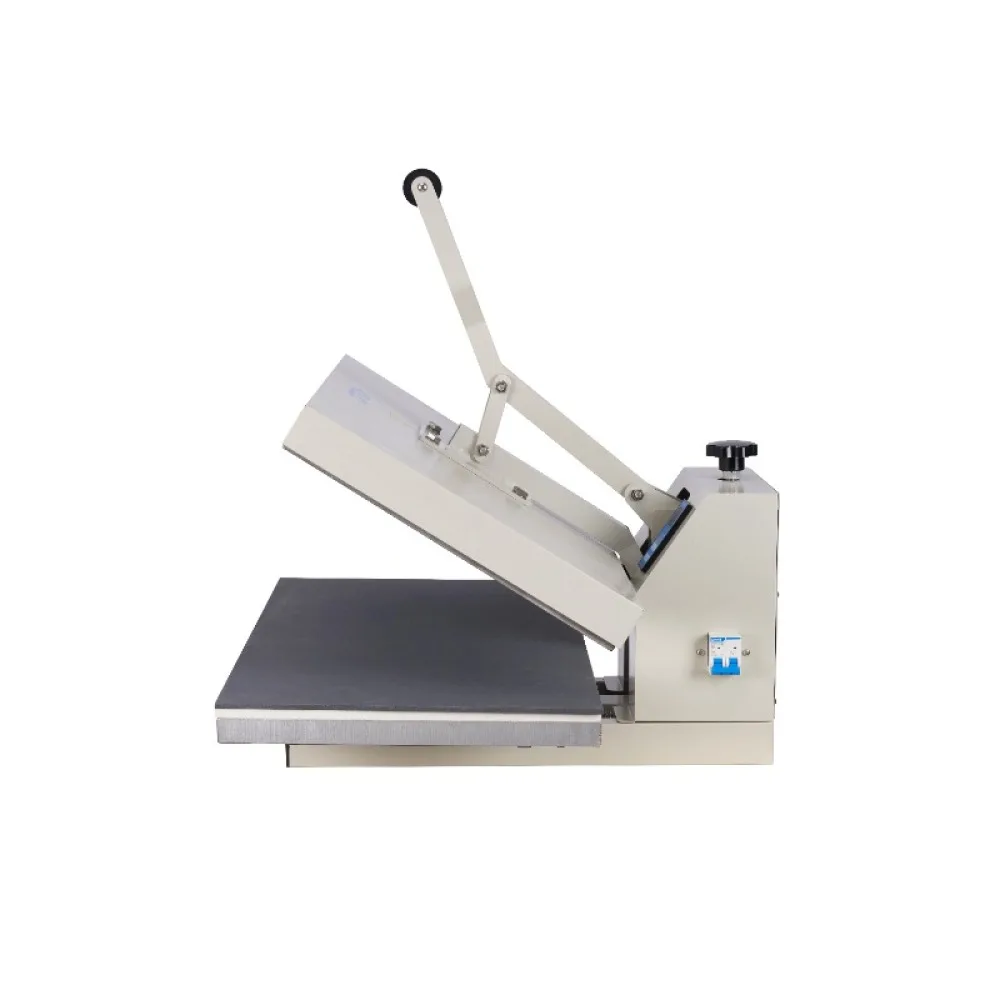

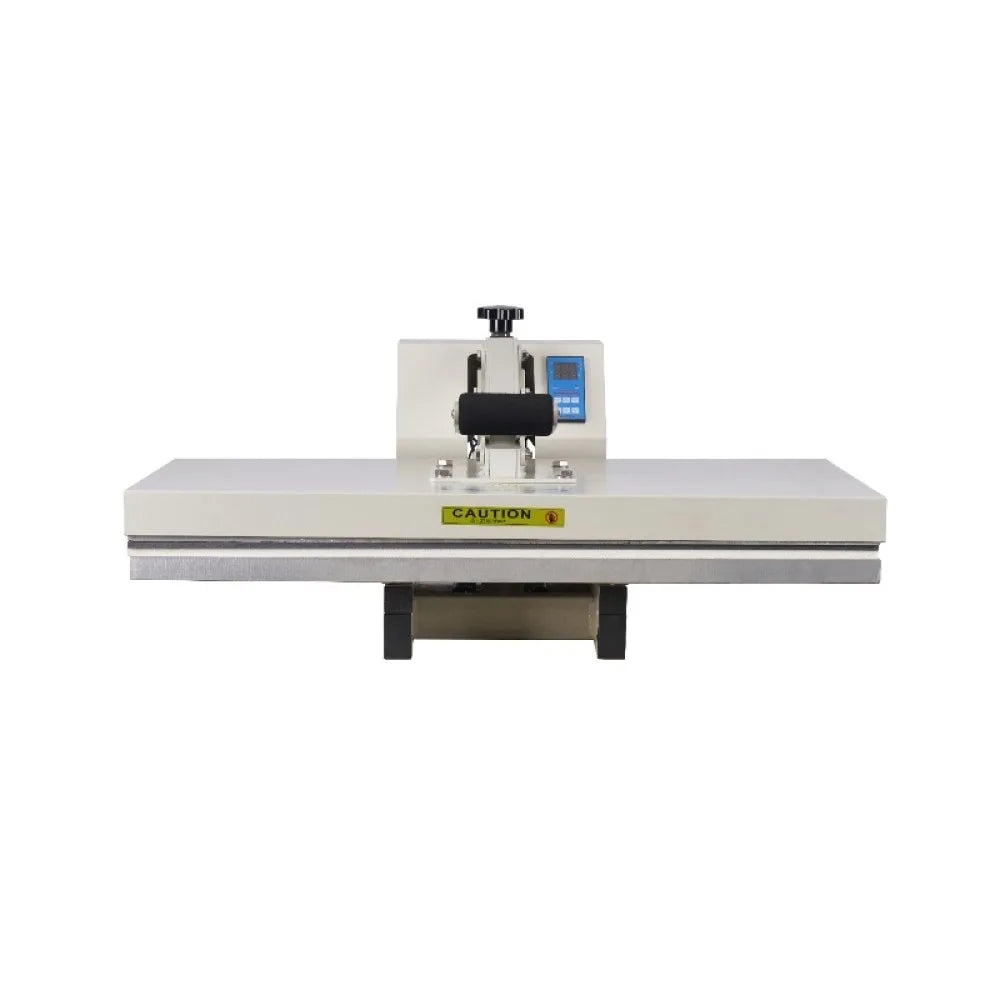

Manual Heat Press Machine

1. Heat press machine suitable for larger area heat transfer press operations 2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely 3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect 4.For T-shirts, mouse pads, license plates, magnetic material and more 5. Special high temperature cloth for hot stamping machine covered 6. High accuracy of signal indication when press process is completed;

High Pressure Manual Heat Press Machine

The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace; The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable; Full digital temperature and time display, temperature error(±2℃); Designed according to human engineering , machine is easy to operate with even pressure Open and close heating plate, easy to use Pressure is adjusted by connecting rod, the adjustment torque is small and the range is large

Technical features:

Voltage(V):	110/60HZ
Power(KW):	2600
Temperature(℃):	0-299
Delaying time(S):	1-99
G.W.(LB):	112.5
Packing Size(in):	32.7X27.6X15.7
Accept Thickness:	Max. 2.36'' Thick Items
Range of Application:	Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:	16 x 32'' (40 x 80cm)

Pure Cotton Time:	15s-25s
Polyester Time:	40s
Chemical Fiber Time:	10s-40s
Pearl Board Time:	60s-100s
Metal Pendant Time:	60s
Mousepad Time:	50s
Vitrolite Time:	180s
Ceramics Time:	180s

Temperature Requirements of Different Materials

Pure cotton	356℉-428℉ (180℃-220℃)
Polyester	356℉ (180℃)
Chemical fiber	302℉-356℉ (150℃-180℃)
Pearl board	356℉ (180℃)
Metal pendant	356℉ (180℃)
Mousepad	374℉ (190℃)
Key ring pendant	356℉ (180℃)
Ceramics	356℉-428℉ (180℃-220℃)

Account

16x32 Large Format Manual Heat Press Machine 110V,2600W
